Before & After Photos

This Jacksonville homeowner noticed their sunroom beginning to separate from the main home, leaving cracks and visible settling around the foundation. Over time, Florida’s sandy soils and moisture changes caused the foundation to lose support, creating structural concerns that needed to be addressed before they worsened.

Our crew installed helical piers, a permanent solution designed to stabilize and lift foundations. After carefully excavating along the affected area, we drove steel piers deep into stable soil until reaching load-bearing strata. Each pier was then secured to the foundation with heavy-duty brackets, transferring the weight of the structure off weak soils and onto solid ground below.

Once stabilized, the foundation was lifted and leveled, restoring both safety and appearance. Now, this Jacksonville home is protected against further settling, giving the homeowner peace of mind that their investment is secure for years to come.

At this Jacksonville, FL home, the homeowner noticed cracks forming along the base of their pool enclosure a clear sign of foundation settlement. Our team installed helical piers to permanently stabilize the affected section and prevent further movement.

The process involved carefully excavating the area, securing pier brackets beneath the foundation, and advancing the steel piers deep into stable soil layers. Once installed, the foundation was lifted and reinforced to its original position. This repair ensures lasting stability and peace of mind, protecting the homeowner’s pool area from future settlement.

In Jacksonville, FL, our team installed helical piers to address noticeable settlement along this brick exterior wall. Cracking, wall separation, and downward movement were clear indicators that the foundation was losing support.

These photos show the installation process, including excavation around the footing and placement of the helical pier brackets beneath the structure. By transferring the load to deeper, stable soil layers, the helical piers provide long-term stabilization and help prevent further cracking or structural damage.

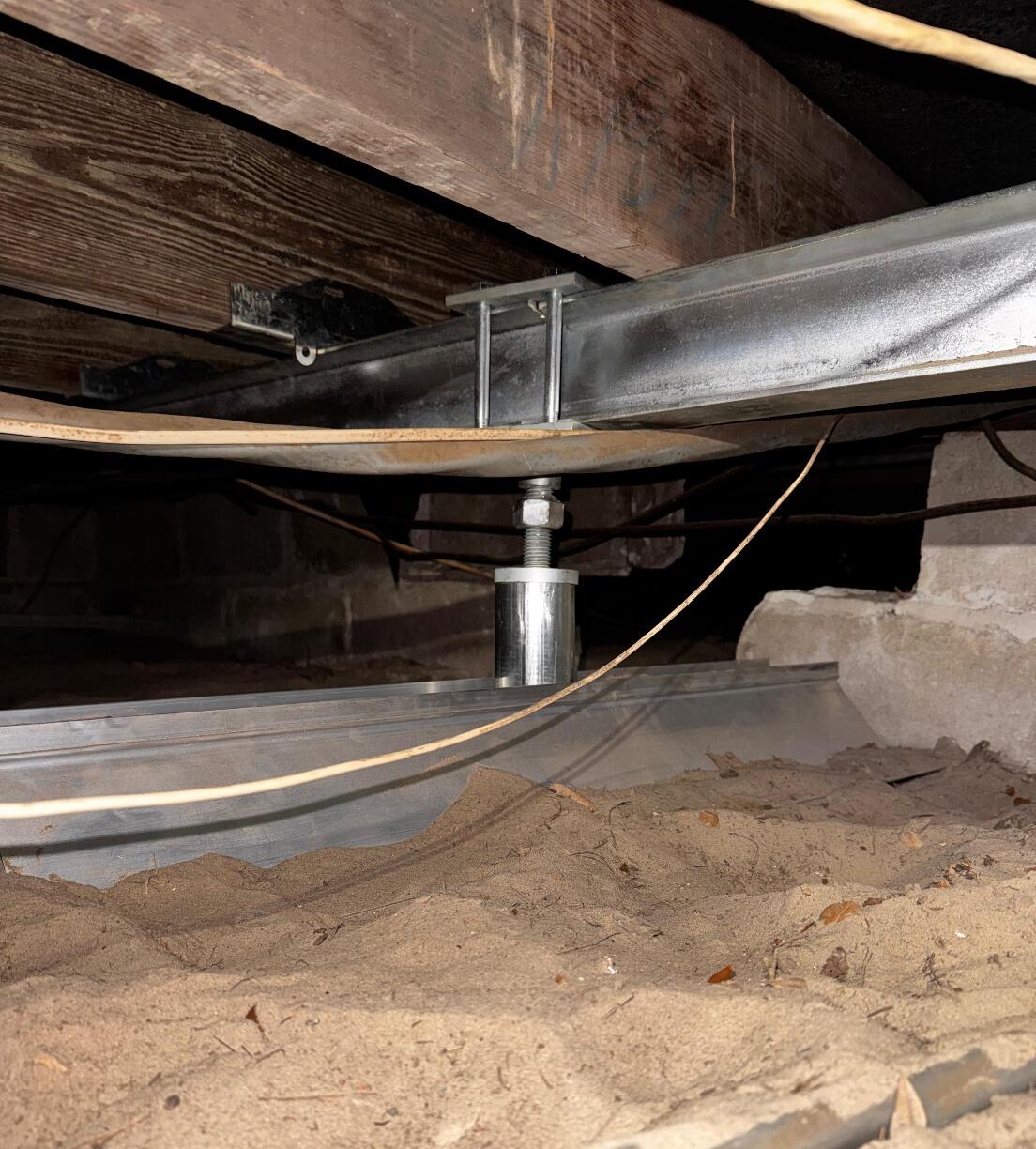

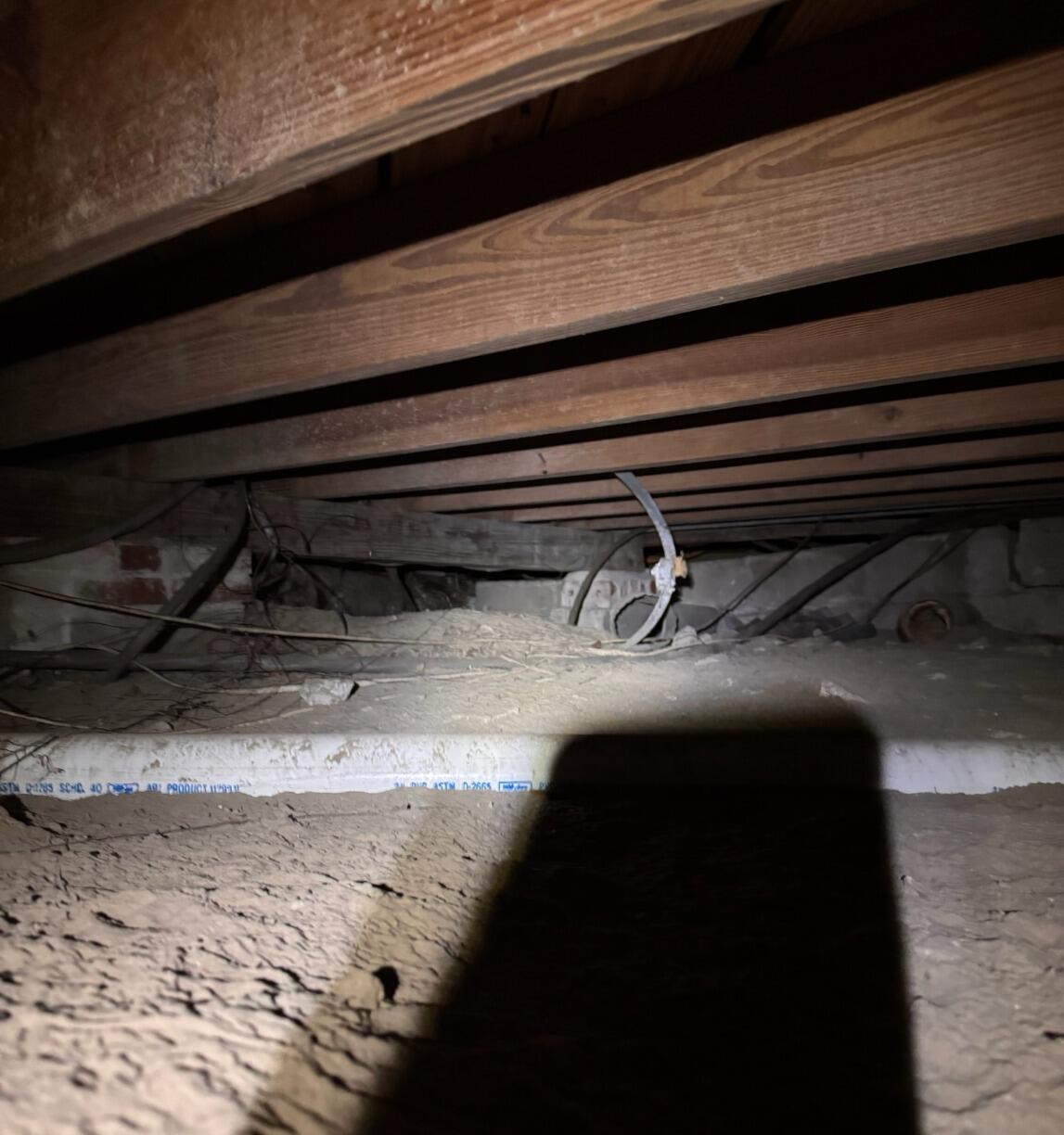

A homeowner in Jacksonville, NC with a pier-and-beam foundation began noticing uneven floors and separation in the wood flooring throughout the home common signs of weakening crawlspace supports. To address the issue, our team installed a SmartJack support system beneath the floor structure to provide additional strength and stability.

The SmartJack system helps lift and support sagging floor joists, reducing floor bounce and helping prevent further movement. With the new supports in place, this homeowner now has a stronger, more stable foundation system and greater peace of mind.

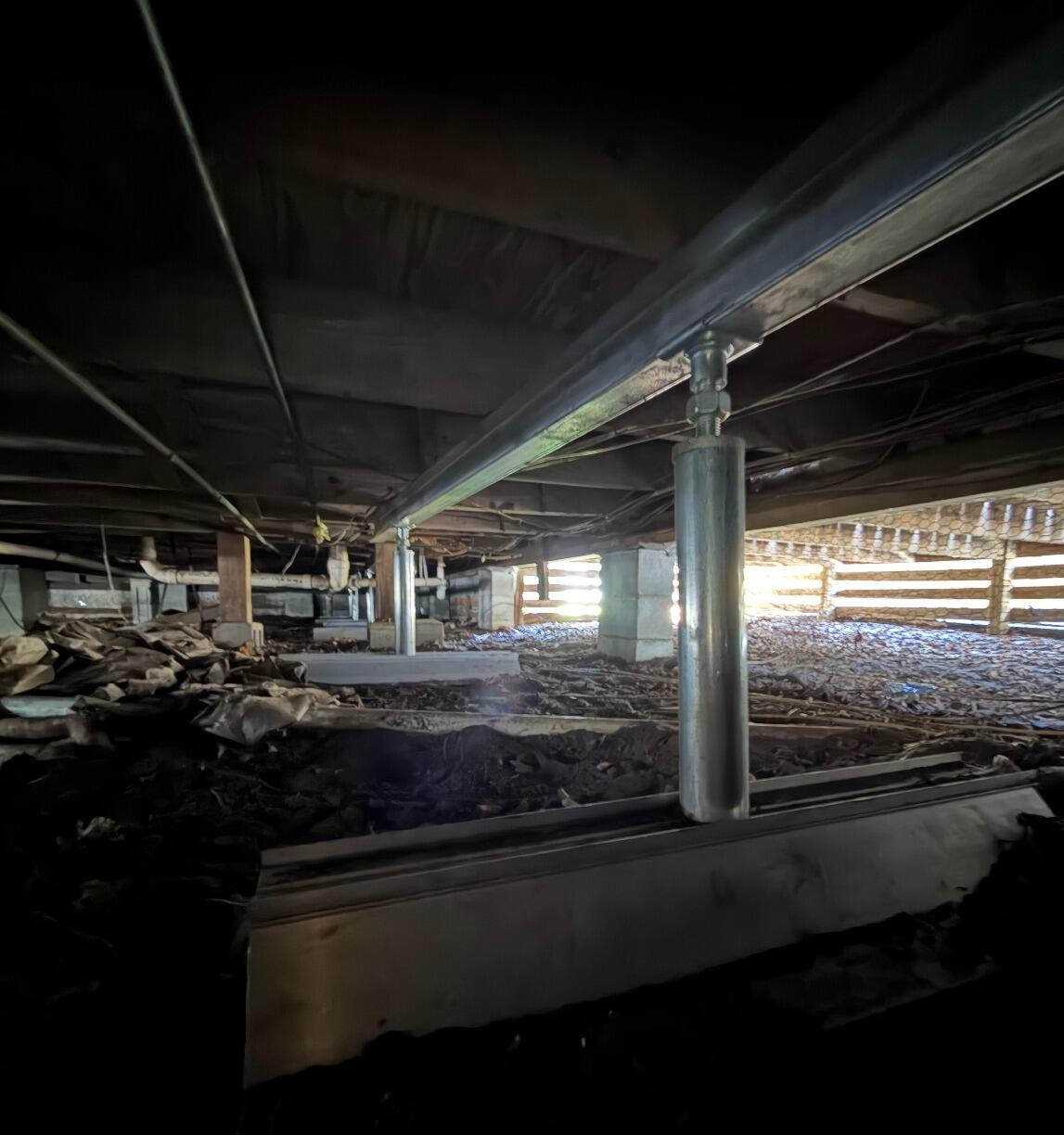

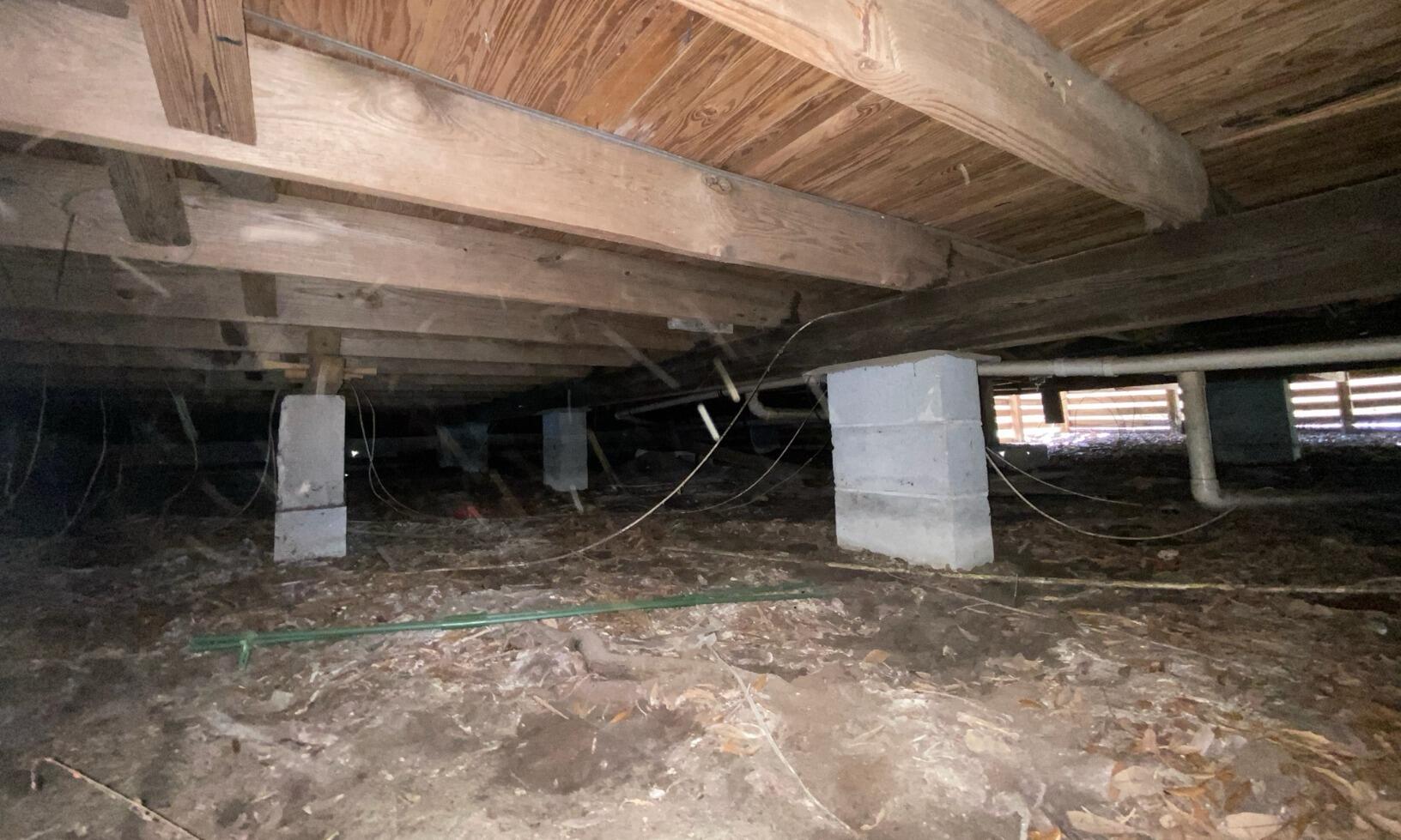

This home's floors were sinking and doors were sticking due to weakened floor joists and support beams below the house. We permanently stabilized the foundation by installing SmartJacks with steel supplemental beams throughout the crawl space. These fully-adjustable steel piers stop settlement in its tracks and may even lift the floors above back to their original position.
