Before & After Photos

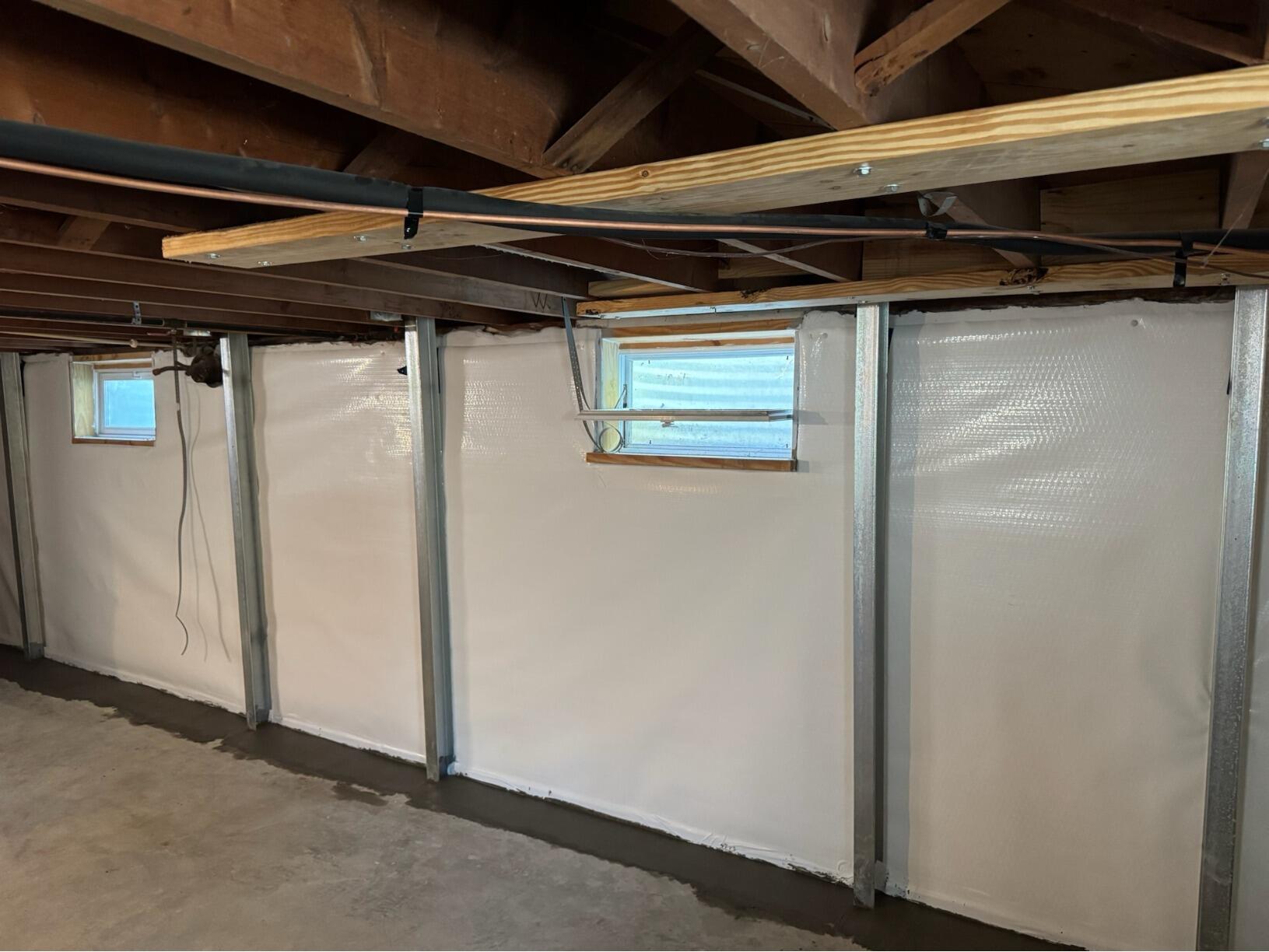

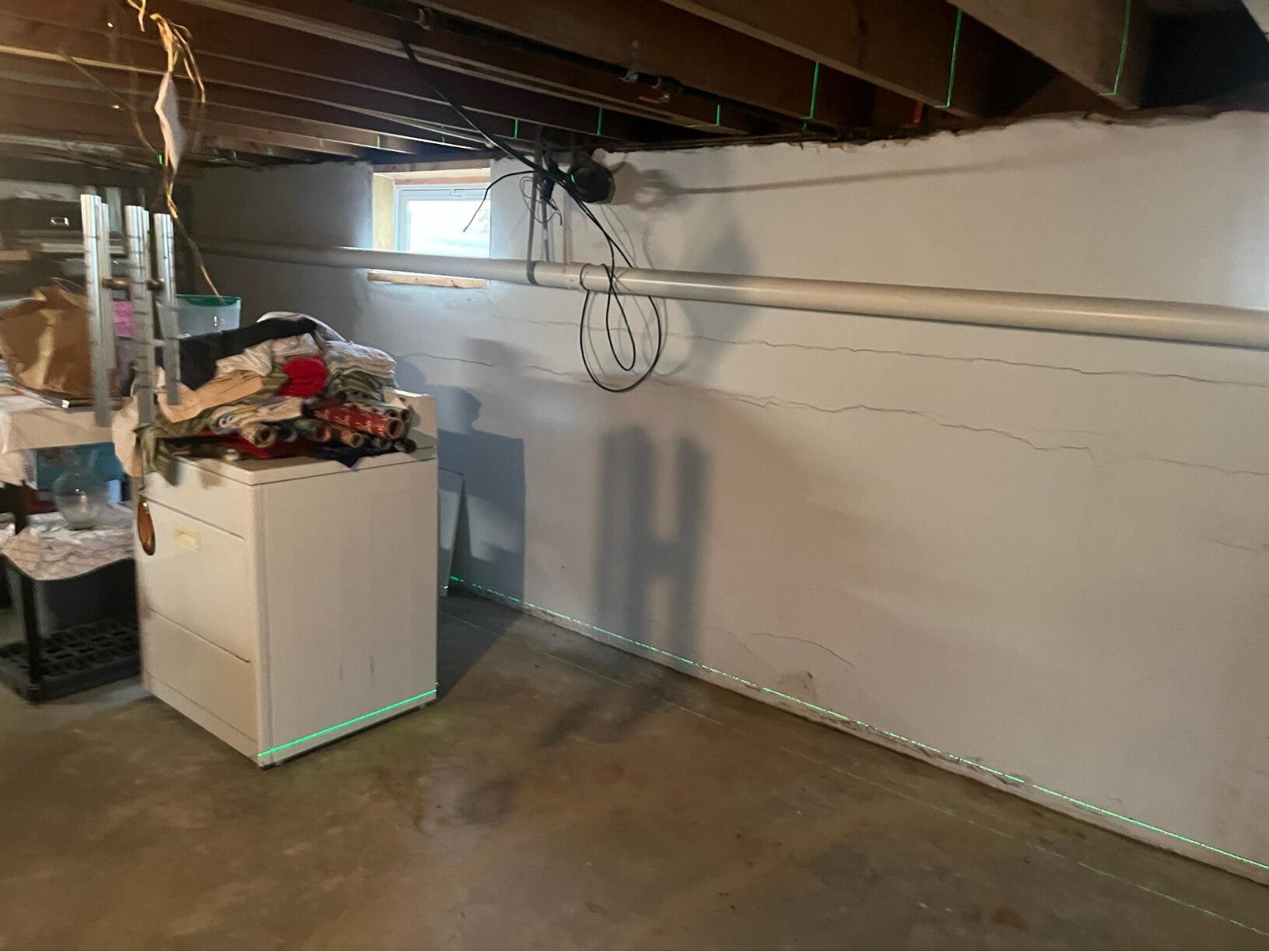

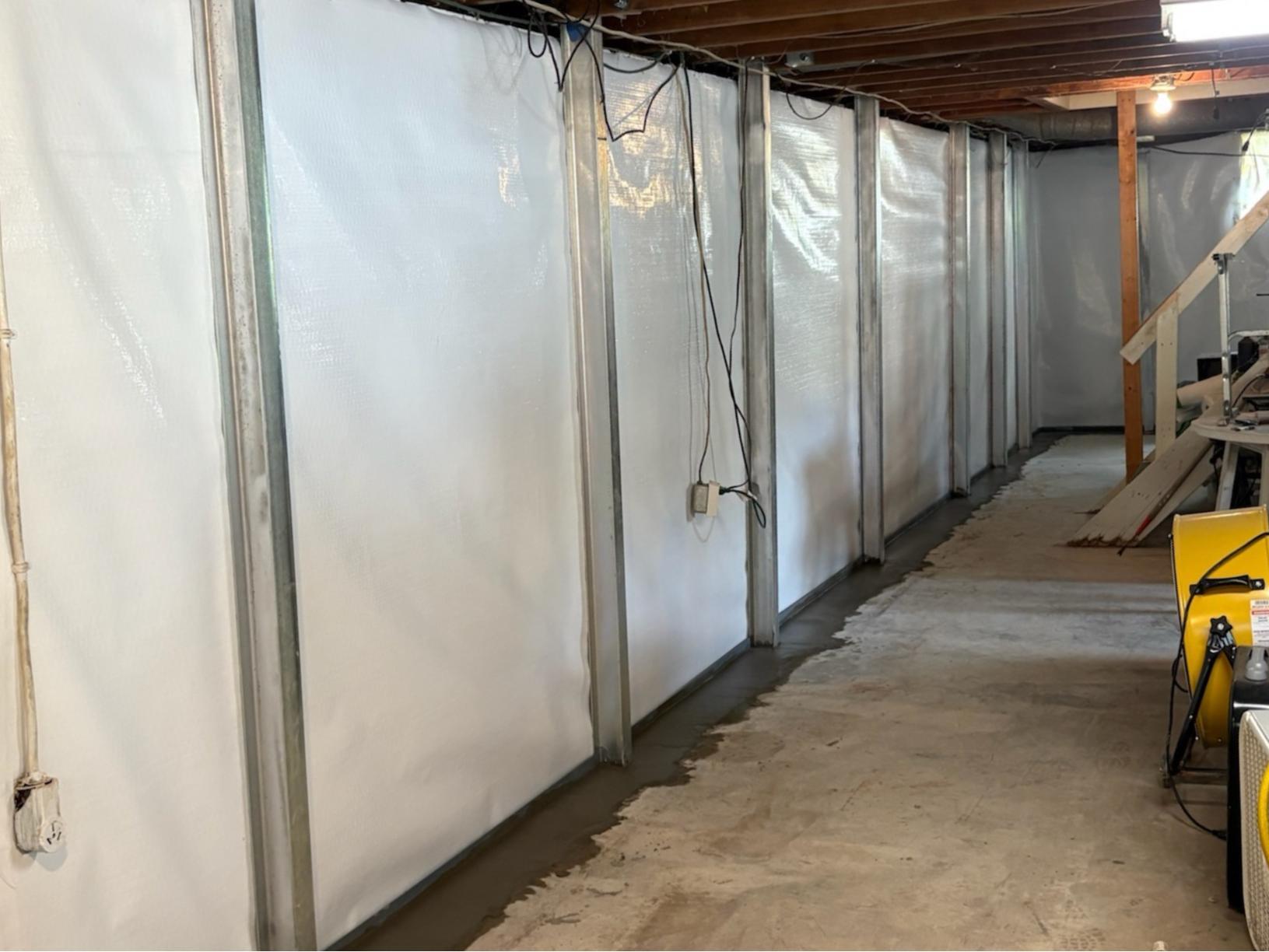

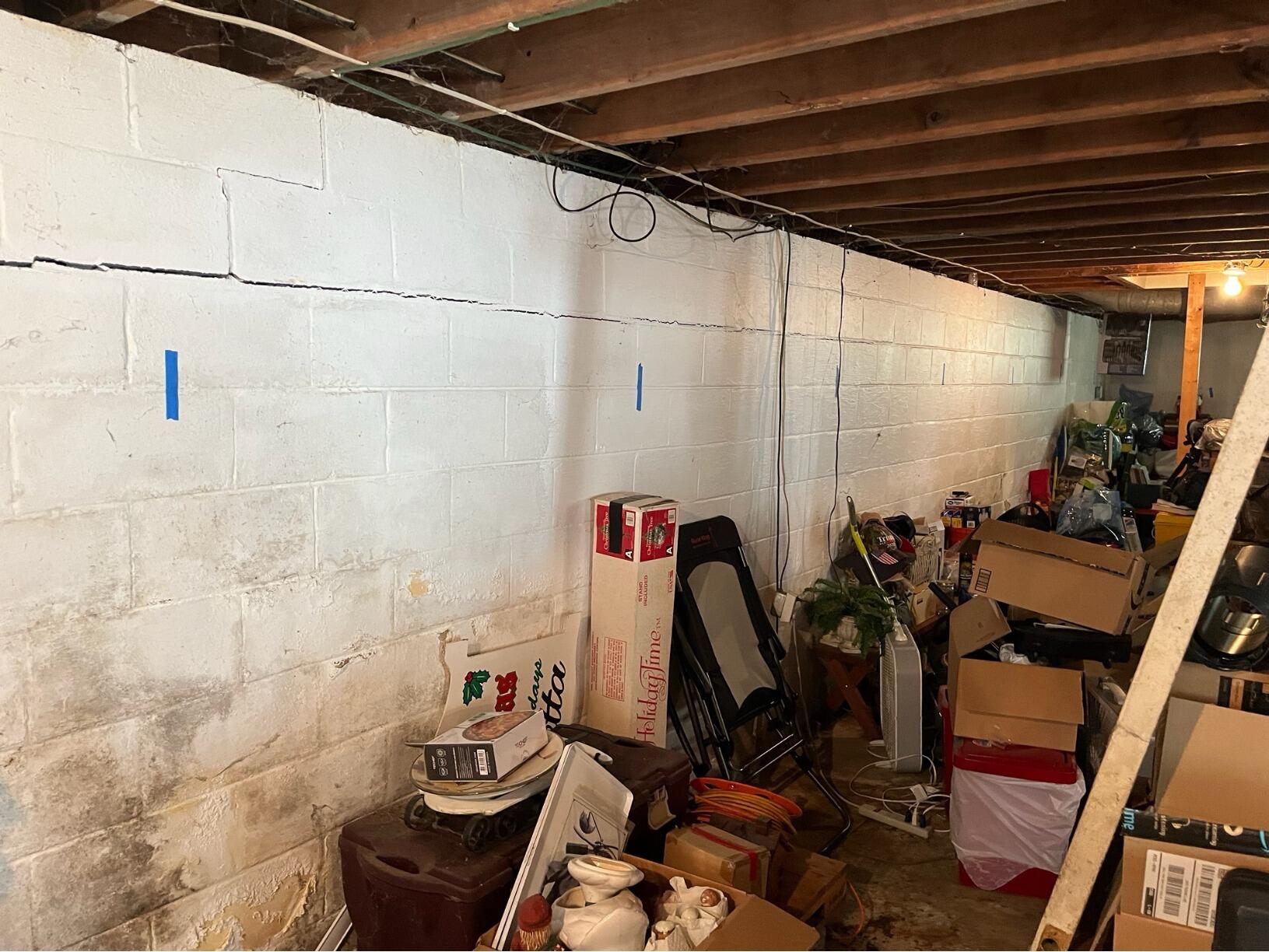

This below grade garage was receiving a lot of hydro-static pressure around certain walls. When this happens, the walls tend to bow in and cracks begin to form from the large amount of water that is sitting around the foundation. We first relieved the pressure by drilling weeping holes into the trenches where the waterproofing system will go. WaterGuard was then placed into the trenches, connected to a TripleSafe sump pump and a discharge line. We then placed CleanSpace walls and PowerBraces to hold the bowing walls up. The CleanSpace walls function as a funnel for moisture seeping through the walls and the CleanSpace also looks cosmetically pleasing as well.

When we gave a free inspection for this basement in Irvine, Kentucky, we noticed a main beam needed a little extra support holding up the floor joists above it, so we recommended we install a SmartJack post. This post is covered in galvanized steel to prevent rusting. Not only were we able to waterproof this basement, but we were able to straighten out their floors as well!

The soil under this Stanton, KY, home was settling, causing a gap to appear between the bottom of their brick wall and the block foundation. We were able to raise the foundation by utilizing helical piers, which effectively transferred the weight of the home to load-bearing soil. We were then able to raise the foundation with hydraulics, which helped close the gap.

In this Bagdad, KY, crawl space, the block foundation wall had shifted inward, leaving visible cracks and gaps along the mortar lines. From the inside, you can clearly see where the wall had moved out of position, creating uneven lines and open joints between blocks To correct the issue, our crew installed 4 helical wall anchors. Each anchor is drilled through the foundation wall and extended deep into stable soil outside of the home. On the inside, 7-inch wide steel plates are attached to the wall where the anchor rod passes through. Once everything is in place, the anchor rod is tightened, pulling against the soil outside and the plate inside. This creates a counterforce strong enough to gradually pull the wall back toward its original position. In the after photo, you can see the results: The gaps between the blocks have closed up significantly, and the wall is visibly straighter. Our wall anchor system provides immediate correction and long-term stabilization, giving homeowners peace of mind that the foundation is secure.

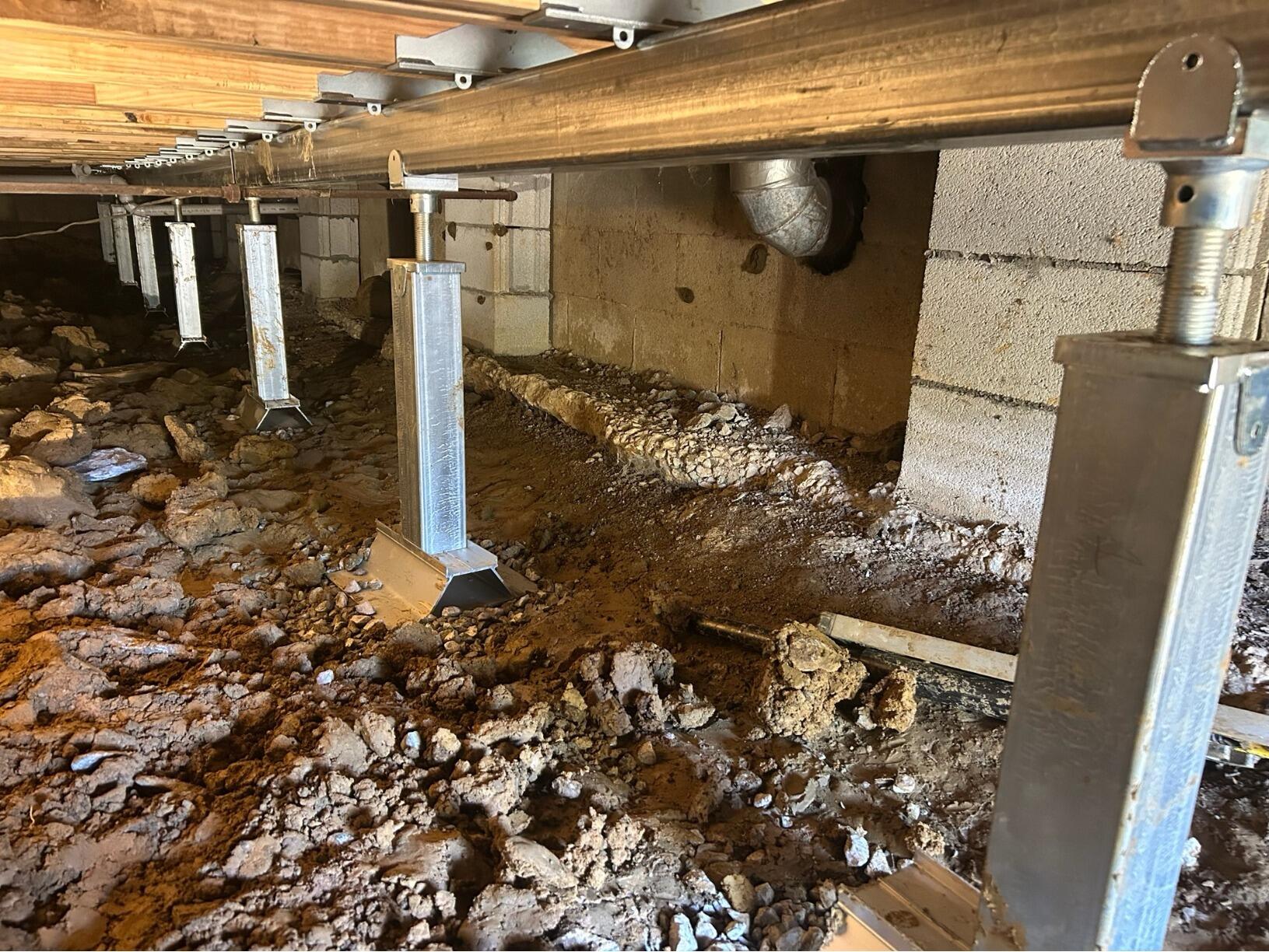

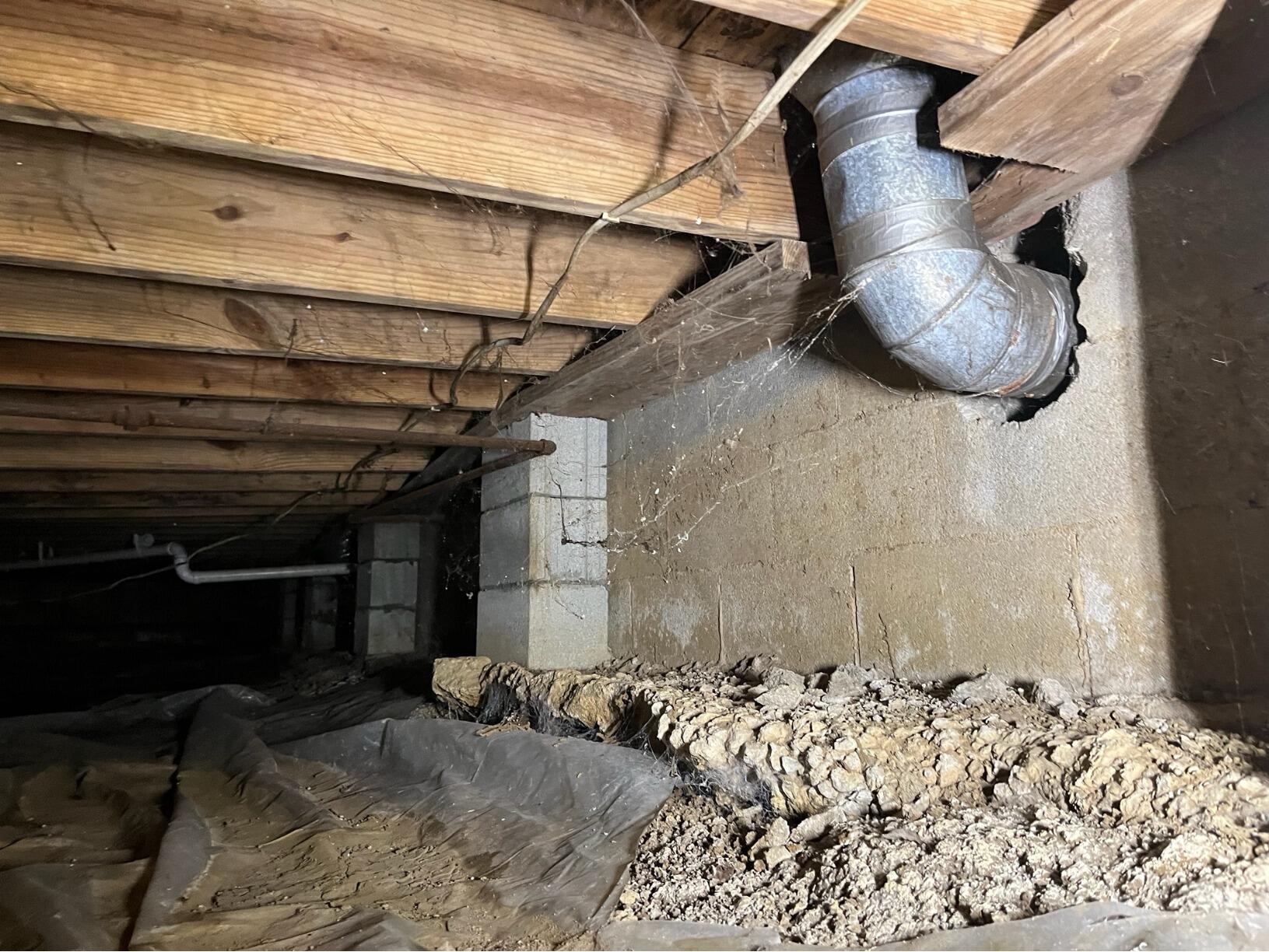

The floors above this crawl space in Lawrenceburg, KY, were sinking. This issue occurred for two reasons: the floor joists became weak from prolonged moisture exposure, and the framing in this foundation had an inadequate support system. To fix the crawl space, we installed our SmartJack crawl space support system to lift the floors back up. Our SmartJack system is able to support heavy loads by distributing the weight of the home evenly across the floor. Once we finished the installation, the homeowner immediately tested the newly supported floors above the space, and they were very pleased.
