Before & After Photos

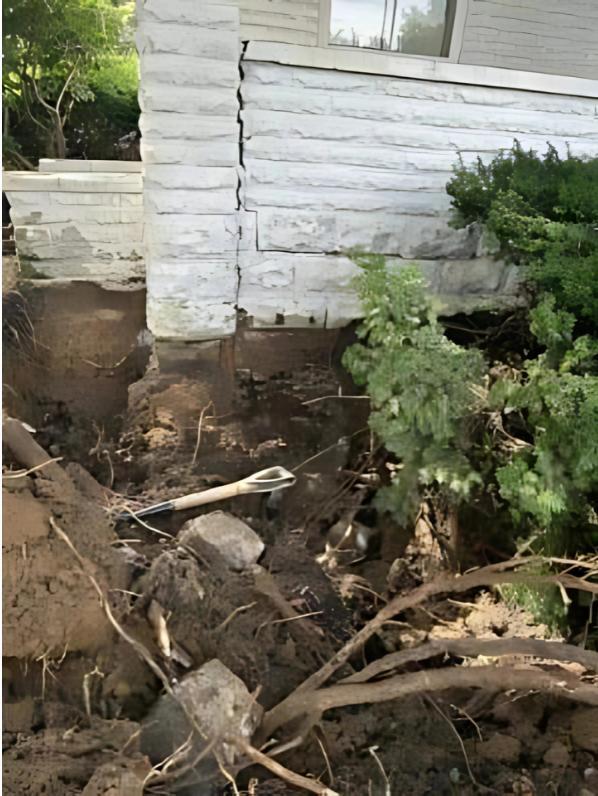

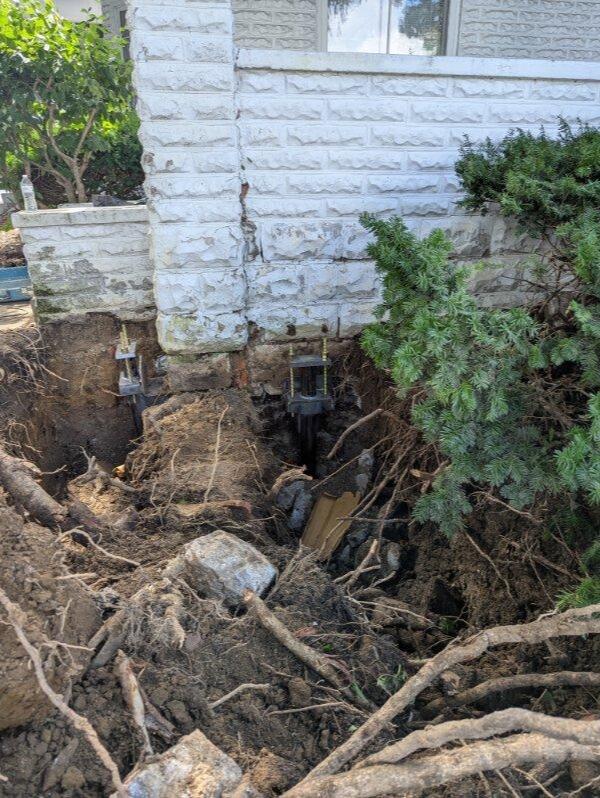

This home in Wyoming, Ohio was experiencing some issues with settling. The customer specifically noted their floors were sloping throughout the house, and they had a crawl space that was 2 feet high. We were able to stabilize this sinking foundation by installing a system of helical piers along the side of the home that was sinking. As you can see, the footing on this home was probably not deep enough to prevent settling. Either way, we were able to combat this problem by ensuring our piers were attached correctly to the foundation, driven into load-bearing strata, and we even lifted the home a little bit with our hydraulic system. You can see the hydraulic system in the before picture by looking at the attached red and blue hoses. We were able to straighten out the floors in the home and were able to ensure the home won't settle any more.

Our helical piers were installed in this house's foundation to save the house from sinking. The piers cause little disturbance and are concealed beneath the home!

The floorboards above this crawl space were sagging and cracking because the concrete block columns supporting them were sinking into the soil. Prolonged dry weather had caused the soil to shrink, creating gaps that allowed the concrete blocks to settle further into the ground. With the blocks no longer able to hold the weight of the home's first floor, the structure began to fail.

The homeowners attempted a DIY fix, using a makeshift arrangement of 2x4s and cinder blocks. Unfortunately, this approach lacked the stability and strength needed to support the crawlspace or anchor securely to solid ground.

To solve the problem, we installed our SmartJack Crawl Space Support System. SmartJacks are designed to prevent sinking by distributing the load across their uniquely engineered, bulb-shaped foundation. They're also adjustable, ensuring that the floors remain level and supported over the long term. With SmartJacks in place, the homeowners can now rest assured that their floors will stay strong and stable for years to come.

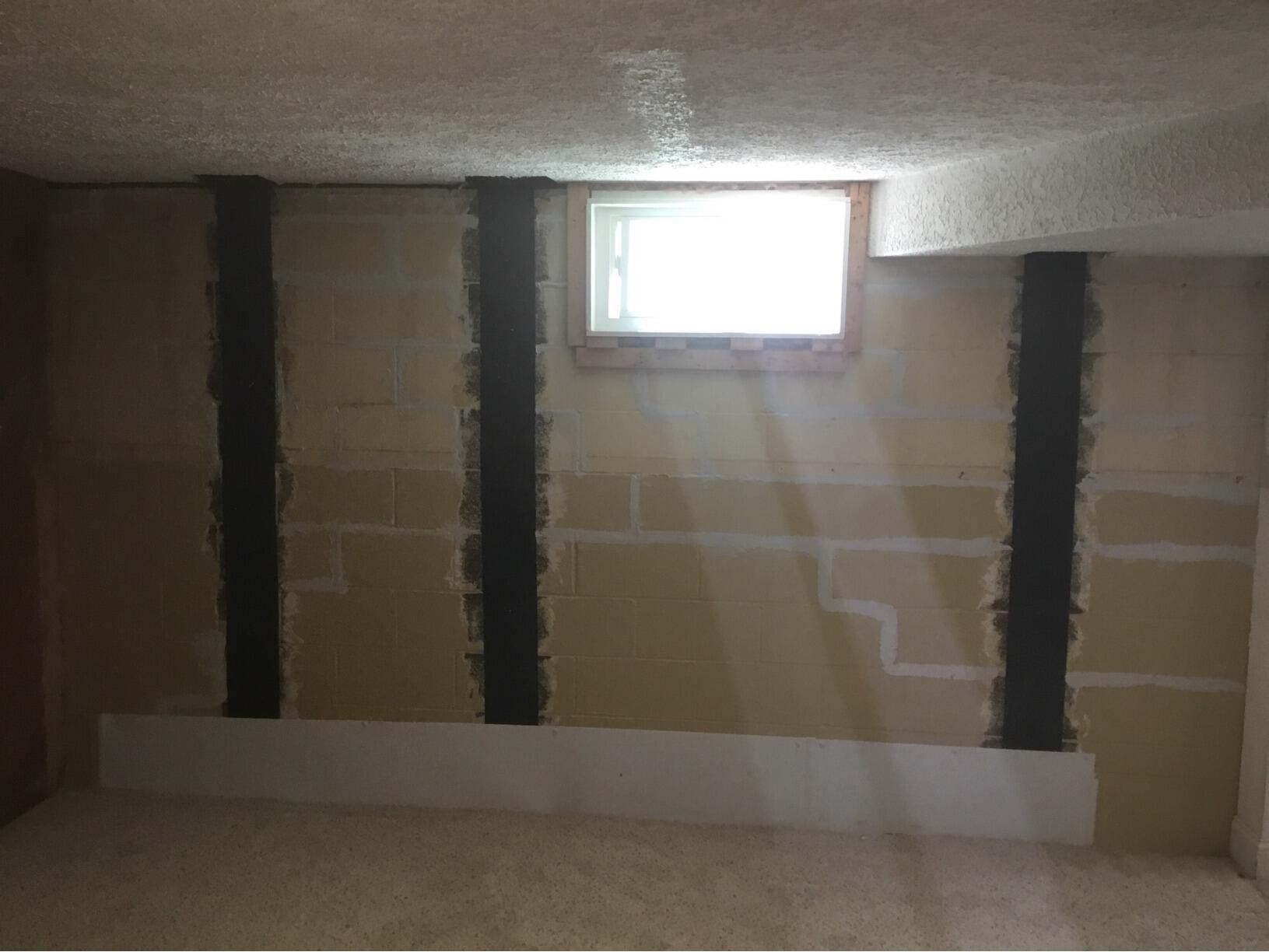

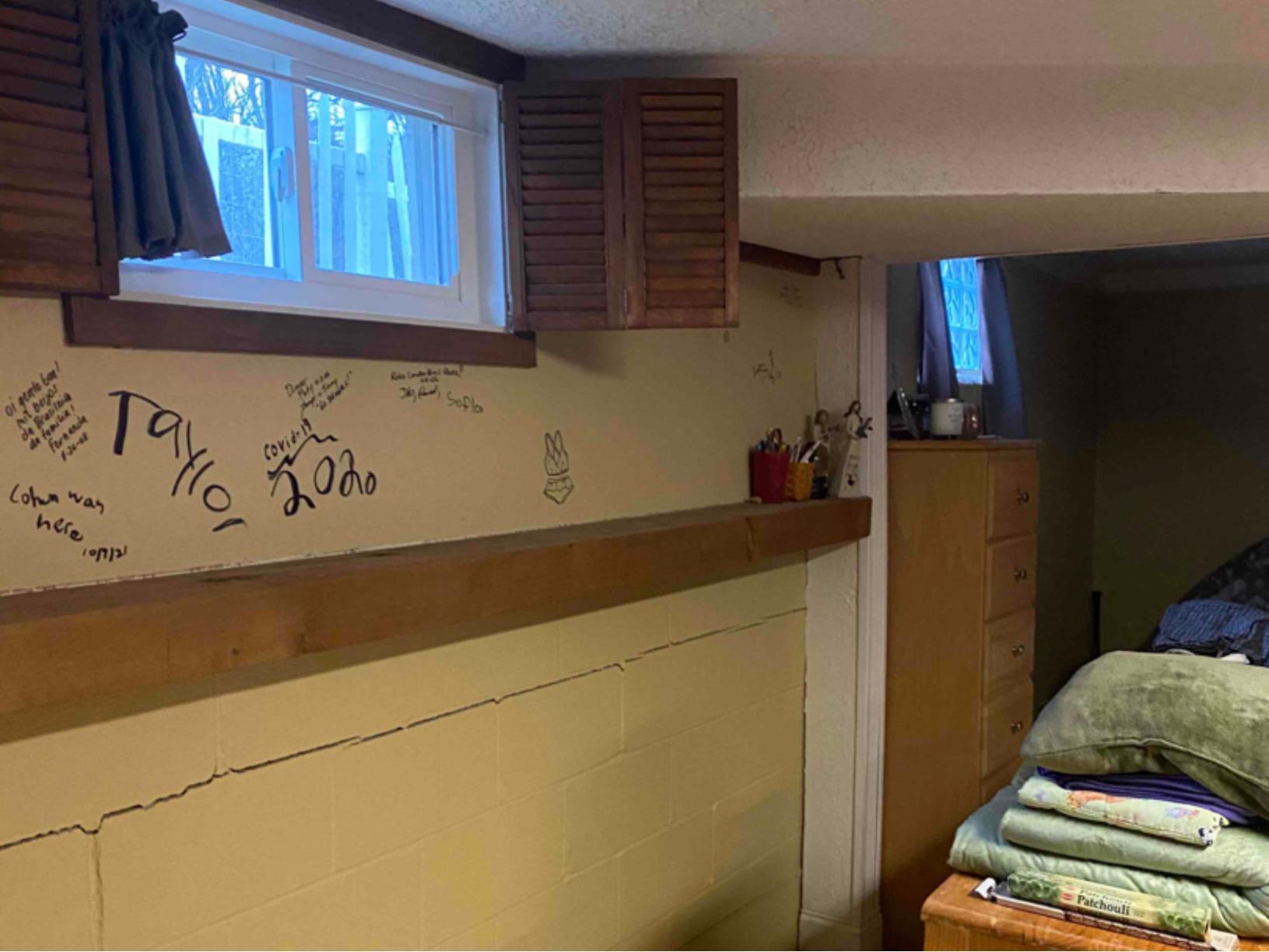

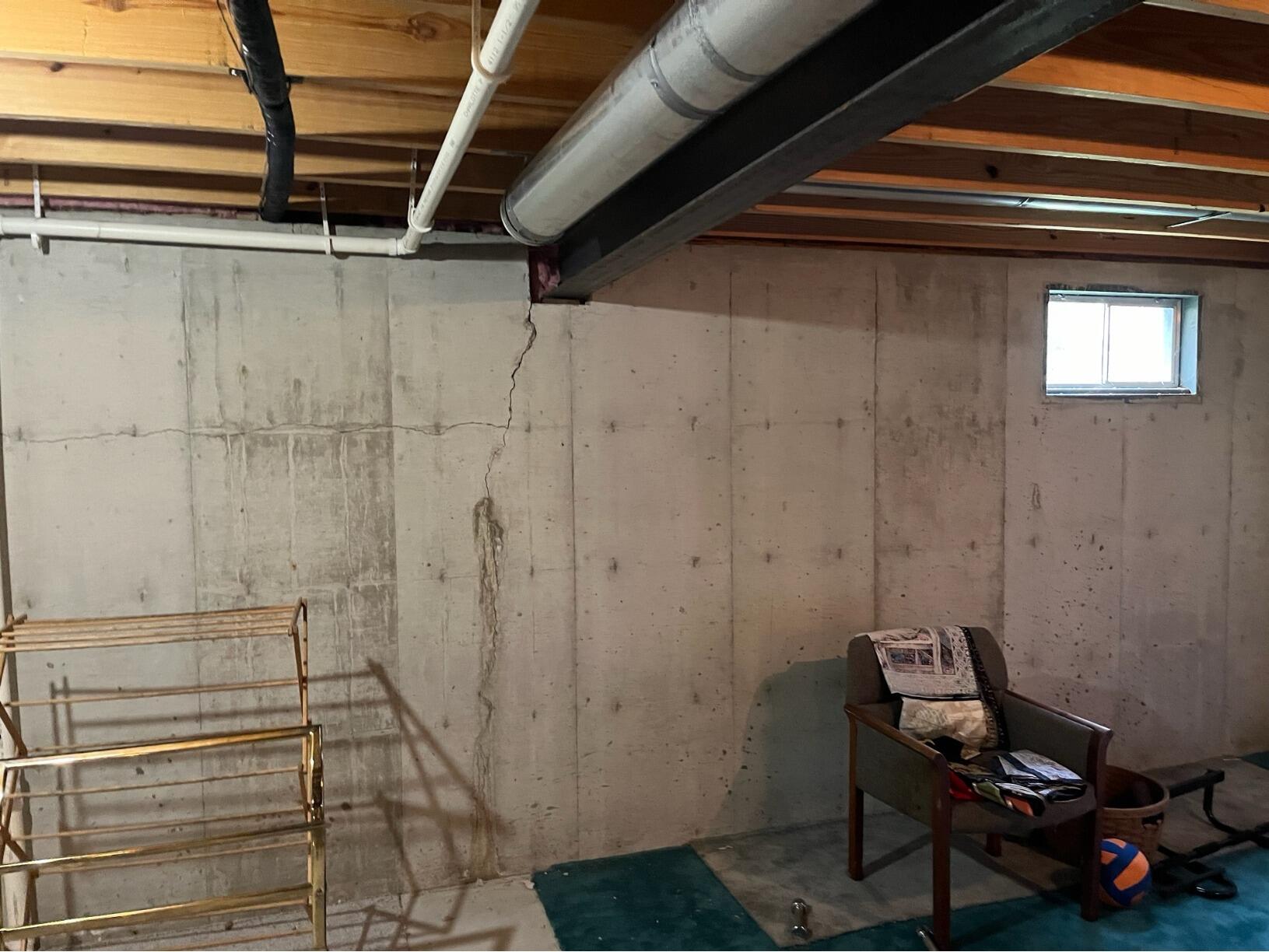

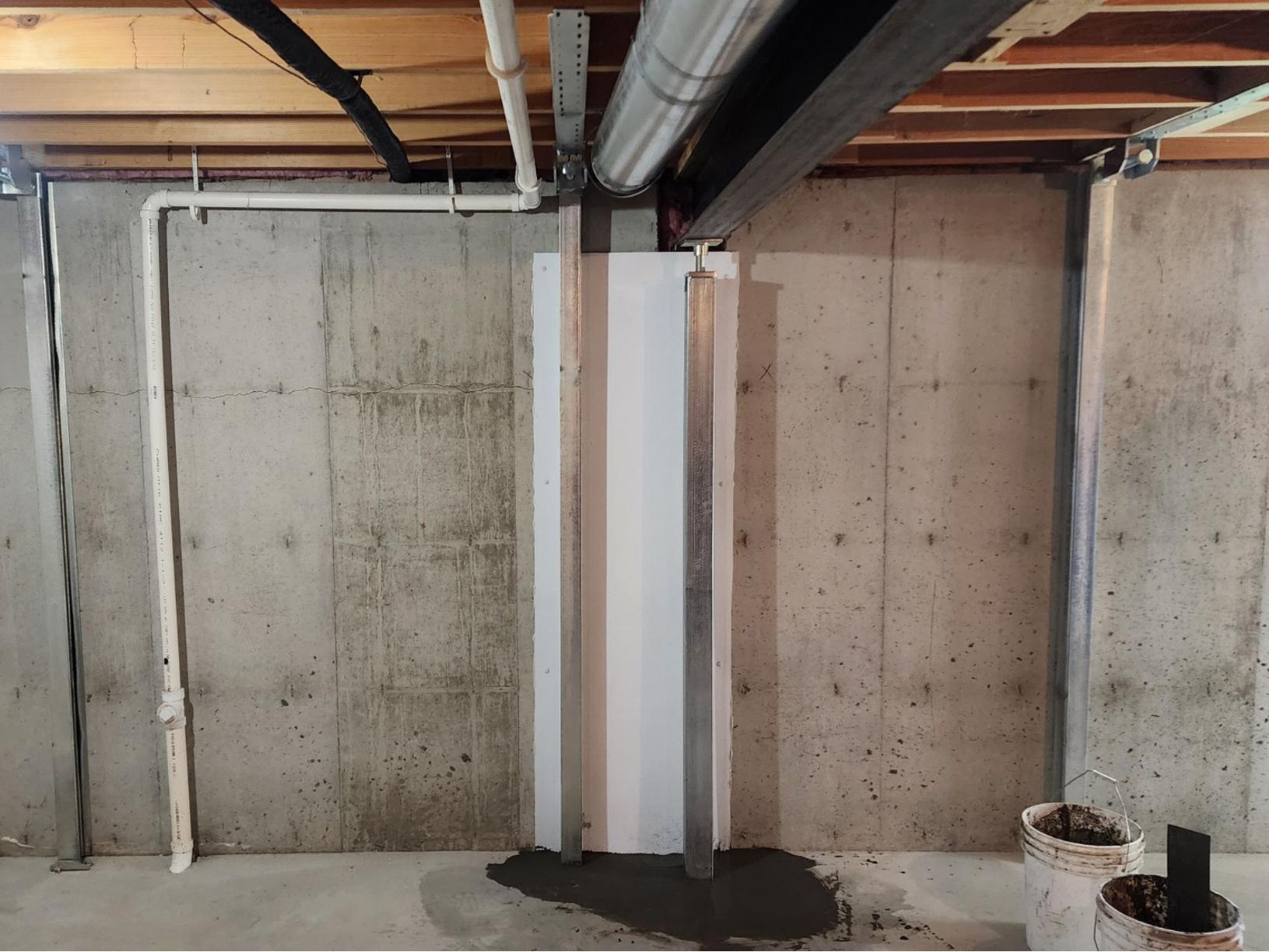

Filling in wall cracks with a sealant may fix the short term problems, but the long term probably will still exist. Bowing walls can lead to some serious problems if not addressed, so give us a call for a free estimate!

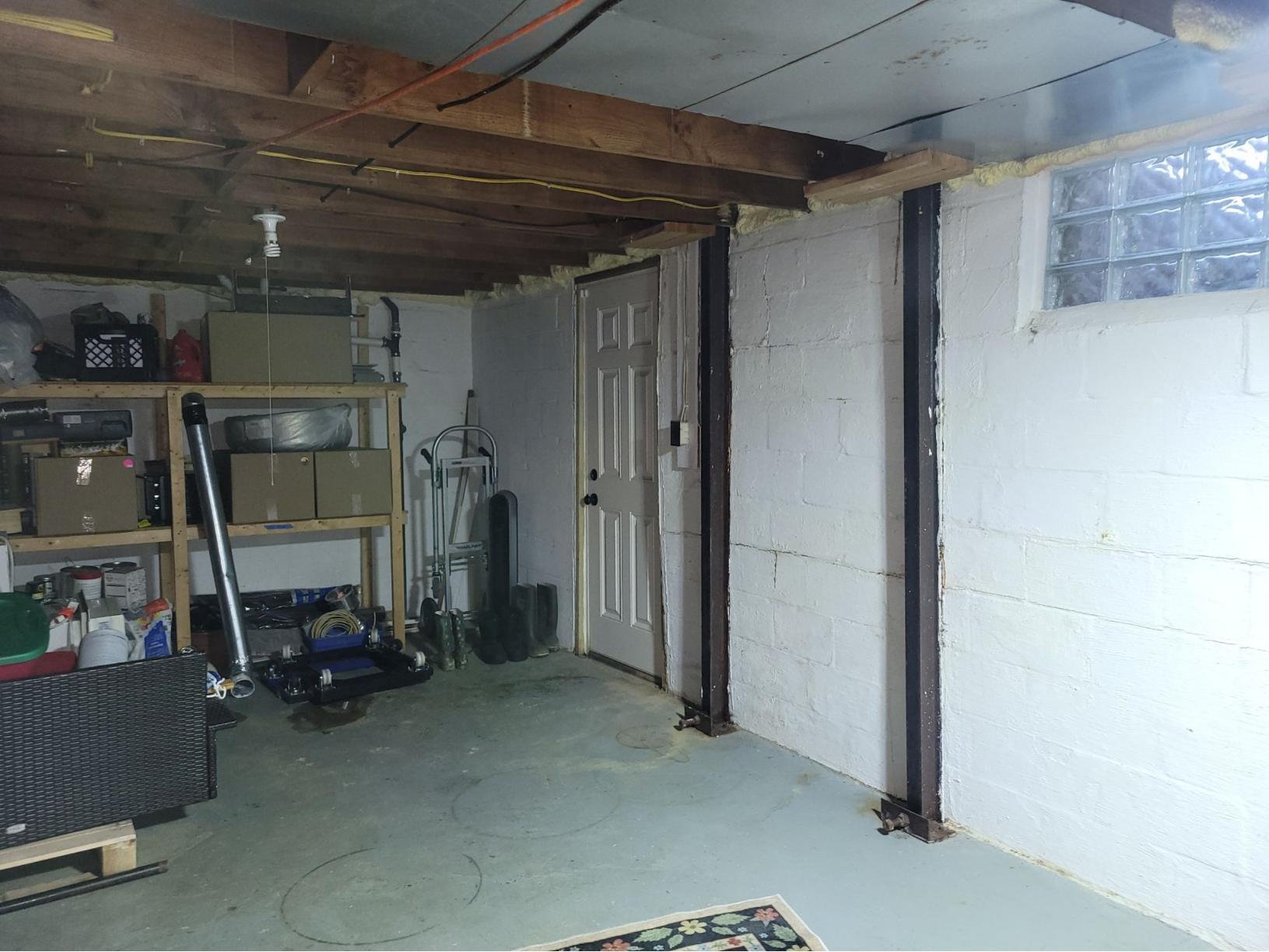

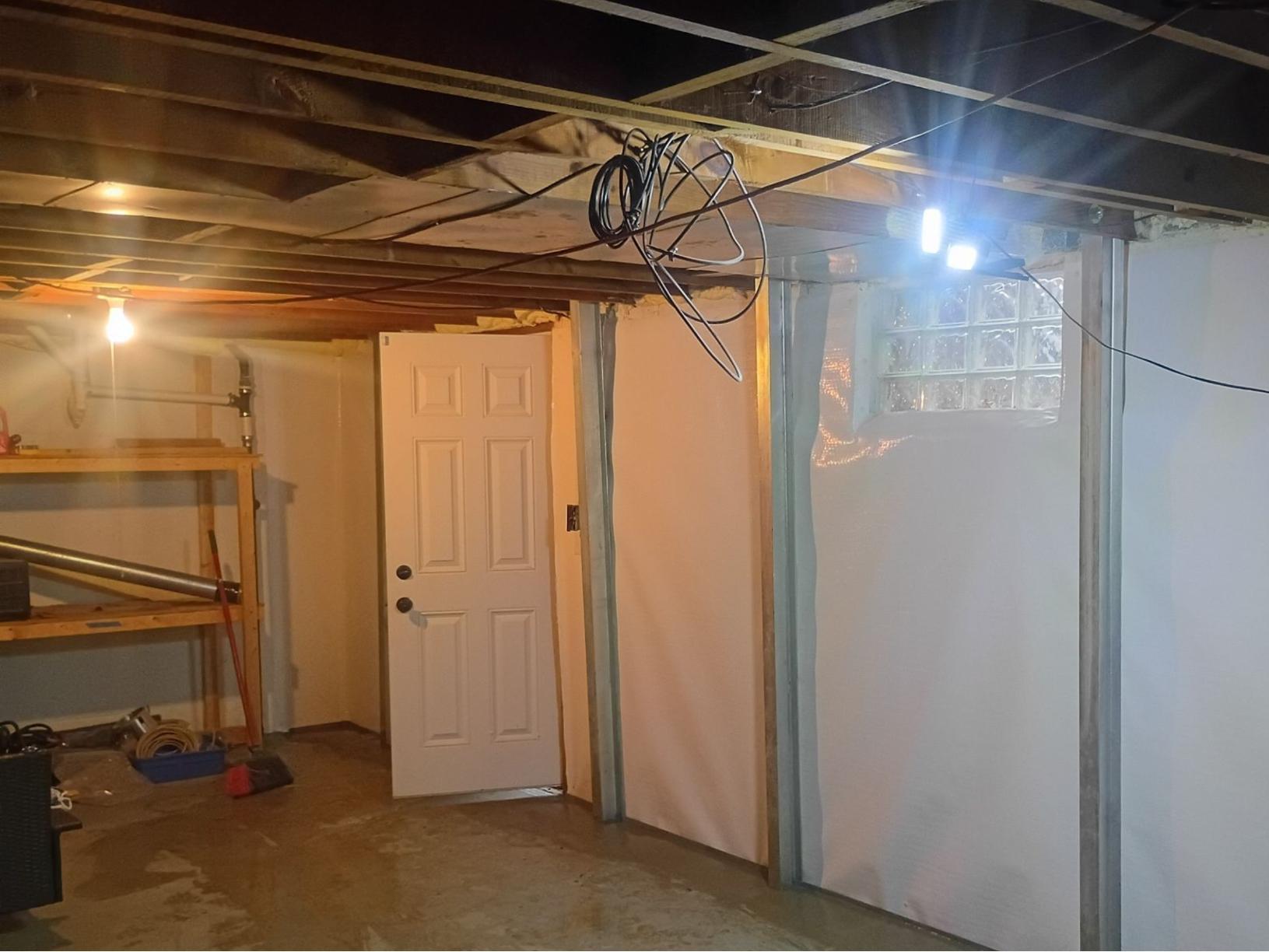

This pier underpinning project to stabilize this sinking foundation required us to tear down a fake wall. This homeowner was a previous client of ours when we stabilized the backside of their garage. They were happy with the job we did, so they had us out again to install more piers. This time, we stabilized the front side. If you want to read more about this project, click this link to read our case study! Click here!
