Before & After Photos

The sinking corner of this garage in Newport, KY, was causing a large crack to appear between the mortar in the block wall. When a block wall cracks due to settling, it commonly appears in a "stair-step" fashion. If you'll notice in the before picture, the crack looks like a staircase, and so that's where the name comes from. This often happens because the weakest point in a block wall is the mortar, so the mortar breaks away first. If you'll notice in the after photo, we were able to lift the foundation back up with our steel pier system, effectively closing the crack. Not only do our steel piers allow us to lift a structure back up, they also allow us to guarantee the foundation won't move vertically for the lifetime of the structure. After we completed the job, the homeowner was happy to be able to seal the crack back up without the thought of it ever being able to move again.

This pier underpinning project to stabilize this sinking foundation required us to tear down a fake wall. This homeowner was a previous client of ours when we stabilized the backside of their garage. They were happy with the job we did, so they had us out again to install more piers. This time, we stabilized the front side. If you want to read more about this project, click this link to read our case study! Click here!

The floors above this basement in Falmouth, KY, were sloping and sagging. This was not only resulting in loud creaking sounds for the inhabitants of the home when they walked across the floorboards, but it was also causing gaps to appear between the walls and floors upstairs. After inspecting the basement, our team found that several of the existing support posts were no longer providing adequate support to the main beams. We added our adjustable SmartJacks posts to permanently stabilize and lift the floor joist system. Once installed, the floors were level again, the creaking stopped, and the upstairs gaps closed up, restoring the home's comfort and stability.

This chimney in Pleasant Hill, Ohio was showing signs of settlement, creating both structural concerns and visible separation from the home. Using two helical piers, we stabilized & lifted the chimney foundation, which puts the chimney back up against the home and halts further movement. The "before" photo show the misalignment caused by the settling, while the "after" image highlights a secure, reinforced foundation and restored alignment. A clean, lasting solution to a serious problem.

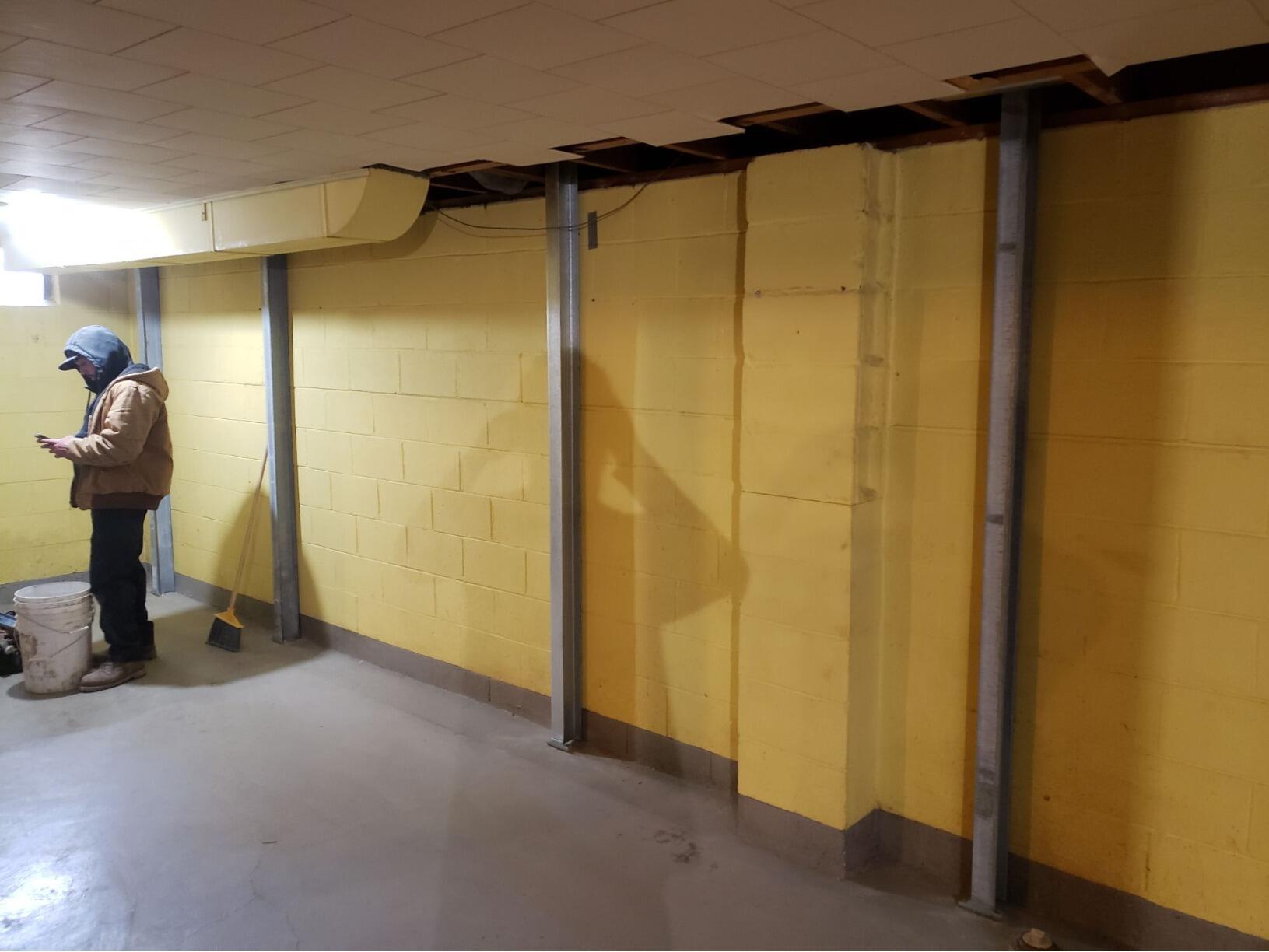

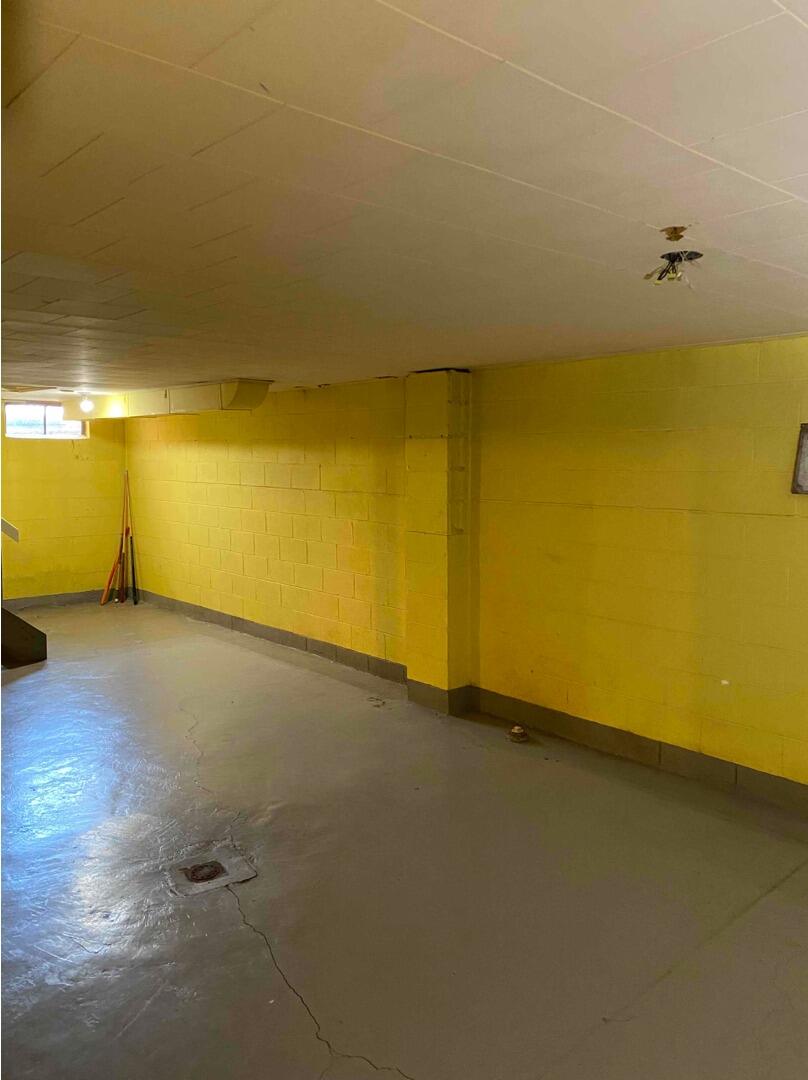

The wall in this basement in California, KY, was not only leaking, it was also actively bowing inwards. Our Inspector was easily able to diagnose both issues just by looking at the moisture stained paneling system and the ceiling panels, which were all out of whack due to the wall shifting inwards. We waterproofed this wall by installing our WaterGuard subfloor drains at the base of the wall, and then we connected the drains to our SuperSump Plus sump pump system, (which was attached with our battery backup system). We then covered the wall with our CleanSpace vapor barrier to drain any moisture that may transfer through the porous concrete down into our subfloor system. To stabilize the moving wall, we braced it with our PowerBraces. These braces are made of galvanized steel, and they can be tightened throughout time to straighten the wall back out. This homeowner was happy with the outcome.
